Hitachi High Technologies

Hitachi High-Tech Sciences DSC7020 Differential Scanning Calorimeter


Name :
Differential Scanning Calorimeter

Type : DSC7020

Overview : Newly developed DSC with high performances to satisfy variety measurements, which are difficult to be fulfilled with traditional DSC. Sensitivity and dynamic range are specially improved. DSC7020 is the best DSC for not only high sensitivity measurements, but for routine measurements such as quality control measurement also.

Features :

1. Realized 0.2µW sensitivity with Digital optimize technologies. It is possible to measure glass transition temperature with 10µg sample only.

2. Newly designed cooling systems including Auto-LN2 cooling system and Electronic Cooling system are available. The cooling performances of both systems are improved.

3. Auto-sampler and Mass flow options improve high effective measurements.

Specifications
Model
DSC7020
AS-3D Auto-sampler
Temperature Range
-150 ~ 725°C
Sensitivity
0.2µW
Measurement Range
±350mW
Program Speed
0.01 ~100°C/min
Sample Set Number
50

Price: $0.00

Loading Updating cart…

Hitachi High-Tech Sciences DMA7100 Dynamic Mechanical Analyzer


Name :
Dynamic Mechanical Analyzer

Type : DMA7100 Dynamic Mechanical Analyzer

Overview : Now see your data from Inside and Out. The new Hitachi High-Tech DMA7100 with built in Camera allows you to see your sample while it is undergoing dynamic mechanical testing in any of 7 geometries (single cantilever, dual cantilever, tension, compression, shear, film shear, & 3 point bending). The DMA7100 is easy to load and includes easy to use software. The DMA7100 does not require air or gas for use. The optional temperature range on the DMA7100 is -150C to 600C. Other new features include a Lissajaus Monitor, wider frequency range, and a new more compact space-saving design.

Features :

  • Built–in Camera
  • Easy-to-Use Software
  • 7 Geometries
  • Lissajous Monitor



Specifications
Model
DMA 7100
Deformation mode
Bending, Tension, Shear*, Film Shear* Compression* 3-point bending*
Measurement Range
105 to 1012 Pa (Bending) ,105 to 1012 Pa (Tension), 103 to 109 Pa (Shear), 107 to 1011 Pa (Film shear), 105 to 109 Pa (Compression),105 to 1012 Pa(3-point Bending)
Temperature Range
-150 to 600°C
Temperature Scan Rate
0.01 to 20°C/min
Dimensions
420(w) X 630(d) X 725(h) mm

Price: $0.00

Loading Updating cart…

Hitachi High-Tech Sciences DSC7000X

New!!!! Technology on DSC7000X

Overview:

DSC Sensitivity: 0.1µW
Re-engineered new sensor achieves tripled sensor performance by the multiple thermocouples. Uniform and stableheat flow from heat sink to sample and reference is achieved by Center Heat-flow method. These new sensor designs enable DSC sensitivity of 0.1µW.

Features:

Baseline repeatability:
±5µW Structure of the new furnace is optimized by the new simulation technique. Superior baseline stability and repeatability are achieved by suppressing the baseline fluctuation due to the three layer metal insulation of the low heat capacity.
Improved Cooling Control Performance
Dramatically improved cooling following capability enables the accurate temperature control down to the low temperature. Auto LN2 Gas Cooling Unit and Electric Cooling Unit can be exchanged by users easily.



DSC7000X Specifications
Heat Flow Measurement Method Heat Flux Type
Temperature Range -150 to 725°C
DSC Measurement Range +/- 100mW
RMS Noise/Sensitivity 0.05uW/0.1uW
Scanning Rate 0.01 to 100°C
Atmosphere Air, Inert Gas
Sample Pans Open Pans (Al, Pt, Alumina)

Low-Pressure Sealed Pans (Al)

High-Pressure Sealed Pans (Al, Ag, Steel, Au plated steel)

AS-3DX Autosampler Max. 50 samples; Mechanical arm transport

Price: $0.00

Loading Updating cart…

Hitachi High-Tech Sciences TMA7100 Thermo Mechanical Analyzer

Name : Thermo Mechanical Analyzer

Type : TMA7100 Thermo Mechanical Analyzer

Overview : This analyzer was designed for simple yet highly sensitive measurements of the thermal mechanical properties of polymers and other materials. Thermal stress/strain properties can also be measured as a function of temperature or time, thermal expansion, heat shrink, or softening.

Features :

  • High sensitivity of 0.01µm
  • Optional Auto LN2 Gass Cooling Unit (for TMA7100) to improve cooling efficieny
  • Optional Mass Flow Controller unit
  • Built-in option control function for smaller space



Specifications
Model TMA7100
Measurement Method Full Expansion Method
Probe Support Method Cantilever
Sample Size Expansion: Ø10mm X L25mm

Tension: w5 X t1 X L25mm

SS Mode: w5 X t1 X L25mm

Temperature Range -150-600°C
Heating Rates 0.01 to 100°C/min.
TMA Measurement Range +/-5mm
TMA Sensitivity 0.01µm
Load Range +/-5.8N (The maximum load range differs by the probe used).

Price: $0.00

Loading Updating cart…

Hitachi High-Tech Sciences TMA7300 High Temperature Thermo Mechanical Analyzer

Name : Thermo Mechanical Analyzer

Type : TMA7300 High Temperature Thermo Mechanical Analyzer

Overview : This analyzer was designed for simple yet highly sensitive measurements of the thermal mechanical properties of polymers and other materials. Thermal stress/strain properties can also be measured as a function of temperature or time, thermal expansion, heat shrink, or softening.

Features :

  • High sensitivity of 0.01µm
  • Optional Auto LN2 Gass Cooling Unit (for TMA7100) to improve cooling efficieny
  • Optional Mass Flow Controller unit
  • Built-in option control function for smaller space



Specifications
Model TMA7300
Measurement Method Full Expansion Method
Probe Support Method Cantilever
Sample Size Expansion: Ø10mm X L25mmTension: w5 X t1 X L25mm

SS Mode: w5 X t1 X L25mm

Temperature Range Ambient to 1500°C
Heating Rates 0.01 to 100°C/min.
TMA Measurement Range +/-5mm
TMA Sensitivity 0.01µm
Load Range +/-1.4N

Price: $0.00

Loading Updating cart…

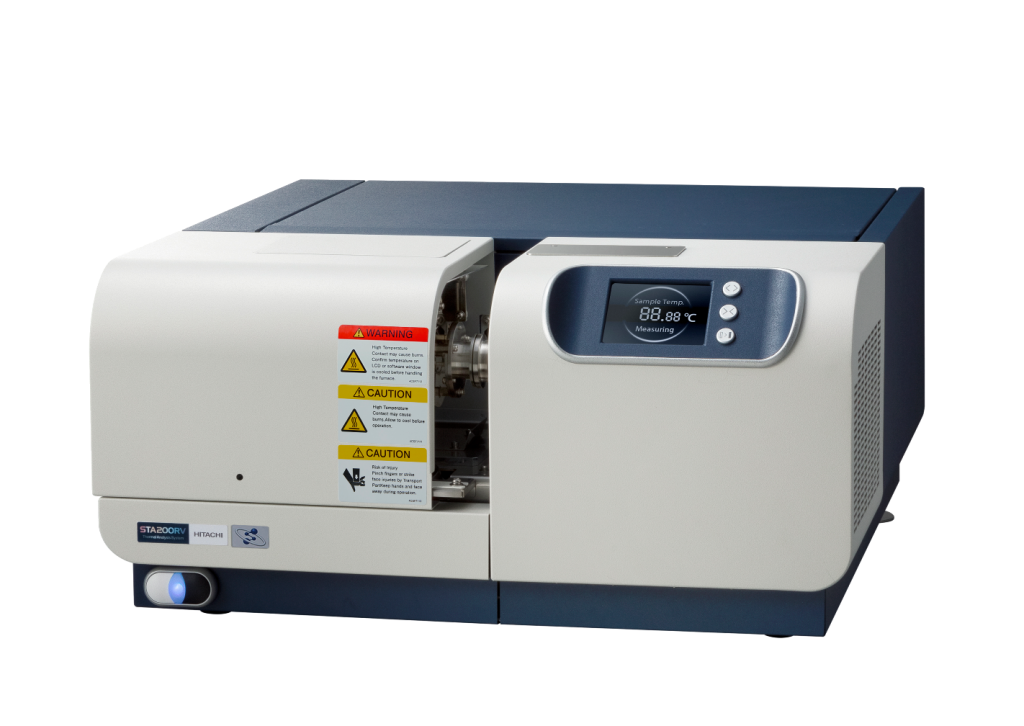

Hitachi High Tech Sciences NEXTA STA

Type : NEXTA STA 200

Features :

  • World-class High-Sensitivity Measurements for Testing and Component Analysis of Minute Sample Quantities
  •  World class baseline performance
  •  Broad measurement application using high temperature control technology
  • Available DSC measurement on the NEXTA STA series- Specific heat capacity measurement over the wide temperature range achieved by DSC
  • “Real View®”Sample Observation Option
  • Newly designed flow channels for high-level gas exchange

Click here for more information

Price: $0.00

Loading Updating cart…

Hitachi High Tech Sciences NEXTA DSC

Type: NEXTA DSC; two models available (DSC200 and DSC600); DSC600 pictured here

Features :

  • The most rugged and high performance, very sensitive DSC with triple high conductive Ni alloy constantan sensor for long time performance.
  • Temperature range: -150C to 725C
  • NEW cooling features: connect both Electronic cooling and LN2 systems simultaneously and switch between systems using software control, saving time and boosting efficiency
  • High temp accuracy (+/- 0.05C) and precision (+/- 0.01C) for high confidence in the results
  • Highest enthalpy accuracy +/- 0.2% and enthalpy precision +/- 0.05% for highest confidence in the results
  • Built in advanced software like MTDSC, Kinetics, Purity, Simulation, Wave form, Specific Heat, to enhance the capability of measurements to maximum extent for all advanced research applications
  • Software can be operated with touch screen or PC tab. It also allows user to see the status of run on remote PC unit and data file can be via email after run completion

See more, do more and save valuable time with the NEXTA DSC and Real-View Technology.

Hitachi has taken their Real-View Technology from Macro to Micro with the development of the Polarized Micro Sample Observation Unit available with NEXTA DSC. Real View® Polarized Microscope DSC will reveal details impossible to see previously like micro impurities and multilayers in laminates, for example. Other key features include:

  • New high-resolution camera delivering 1.2µm pixel resolution
  • Fully controllable polarized filters for contrast and image features enhancement
  • Novel image analysis method for micro melting point analysis
  • User friendly design for ease of use

Click here to see the camera view of a film

Click here to see the camera view of crystals

Click here to learn more information on the NEXTA DSC options and specifications

Price: $0.00

Loading Updating cart…

Hitachi High-Tech Sciences NEXTA DMA

Type : NEXTA DMA 200

Features :

  • Extended 20N Force Range
  • A wide applied force range with 5E-6N resolution and very low levels of noise
  • Choose from air, liquid nitrogen, and electrical gas cooling options
  • ‘Guidance Mode,’ tailored for nonexperts, offers intuitive step-by-step measurement and analysis instructions
  • “Real View®”Sample Observation Option
  • The Real View® system, diverse probes, rapid modulus change detection and advanced analysis offer valuable insights for research

Price: $0.00

Loading Updating cart…
