Hitachi High-Tech Sciences DMA7100 Dynamic Mechanical Analyzer

Get A Quick Quote

  1. Your Name *
    * Please enter your name
  2. Your Email *
    * Please enter a valid email address
  3. Question or Message *
    * Please enter message

Price: $0.00

Loading Updating cart...


Name :
Dynamic Mechanical Analyzer

Type : DMA7100 Dynamic Mechanical Analyzer

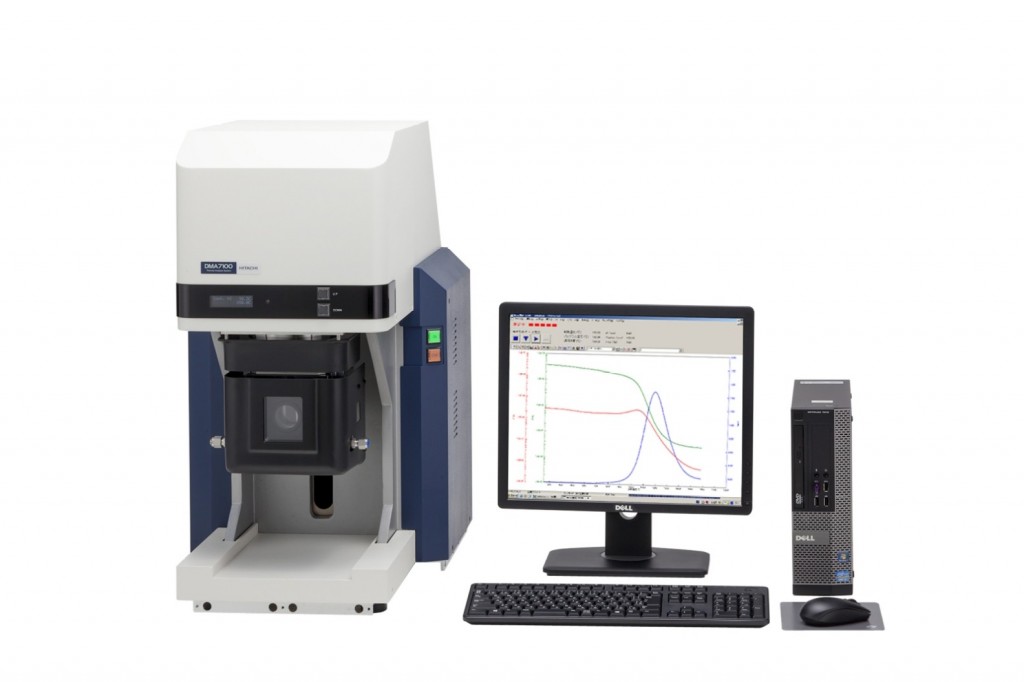

Overview : Now see your data from Inside and Out. The new Hitachi High-Tech DMA7100 with built in Camera allows you to see your sample while it is undergoing dynamic mechanical testing in any of 7 geometries (single cantilever, dual cantilever, tension, compression, shear, film shear, & 3 point bending). The DMA7100 is easy to load and includes easy to use software. The DMA7100 does not require air or gas for use. The optional temperature range on the DMA7100 is -150C to 600C. Other new features include a Lissajaus Monitor, wider frequency range, and a new more compact space-saving design.

Features :

  • Built–in Camera
  • Easy-to-Use Software
  • 7 Geometries
  • Lissajous Monitor



Specifications
Model
DMA 7100
Deformation mode
Bending, Tension, Shear*, Film Shear* Compression* 3-point bending*
Measurement Range
105 to 1012 Pa (Bending) ,105 to 1012 Pa (Tension), 103 to 109 Pa (Shear), 107 to 1011 Pa (Film shear), 105 to 109 Pa (Compression),105 to 1012 Pa(3-point Bending)
Temperature Range
-150 to 600°C
Temperature Scan Rate
0.01 to 20°C/min
Dimensions
420(w) X 630(d) X 725(h) mm
